PI3A223

Dual SPDT

PI3A223 Features

* CMOS Technology for Bus and Analog Applications Low On-Resistance: 0.6Ω Wide VDD Range: 2.7V to 4.2V ±10% Rail-to-Rail Signal Range High Off Isolation: -75dB @ 100kHz Crosstalk Rejection Reduces Signal Distortion: -77dB @ 100kHz

* B

PI3A223 General Description

Pericom Semiconductor's PI3A223 is a dual, fast single-pole double throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage, 2.7V to 4.2V, the PI3A223 has an On-Resistance of 0.6Ω at +2.7V. Break-before-make switch.

PI3A223 Datasheet (457.61 KB)

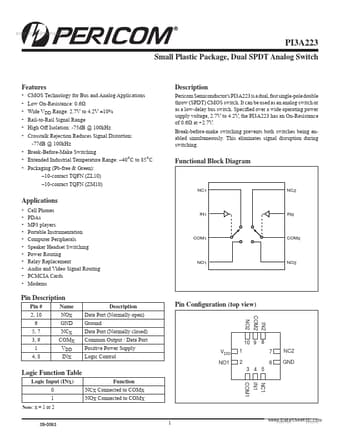

Preview of PI3A223 PDF

Datasheet Details

Part number:

PI3A223

Manufacturer:

Pericom Semiconductor Corporation

File Size:

457.61 KB

Description:

Dual spdt.
