PI3A212 Datasheet - Pericom Semiconductor Corporation

Dual SPDT Analog Switch

PI3A212 Features

* CMOS Technology for Bus and Analog Applications Low On-Resistance: 0.6Ω. Wide VCC Range: 2.7V to 4.2V ±10% Rail-to-Rail Signal Range High Off Isolation: -75dB @ 100kHz Crosstalk Rejection Reduces Signal Distortion: -90dB @ 100kHz

PI3A212 General Description

Pericom Semiconductor's PI3A212 is a dual high-bandwidth, fast single-pole double throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage, 2.7V to 4.2V, the PI3A212 has an On-Resistance of 0.6Ω at +2.7V. Break-be.

PI3A212 Datasheet (637.84 KB)

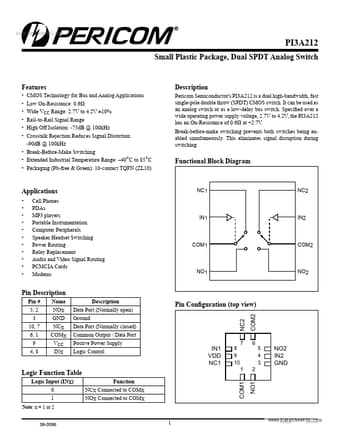

Preview of PI3A212 PDF

Datasheet Details

Part number:

PI3A212

Manufacturer:

Pericom Semiconductor Corporation

File Size:

637.84 KB

Description:

Dual spdt analog switch.
