PI3A268SC

Dual SPDT

PI3A268SC Features

* CMOS Technology for Bus and Analog Applications Low On-Resistance: 0.6Ω. Wide VDD Range: 2.8 to 4.2 High Off Isolation: -80dB @ 100kHz Crosstalk Rejection Reduces Signal Distortion: -80dB @ 100kHz Input signals

PI3A268SC General Description

Pericom Semiconductor's PI3A268SC is a dual, fast single-pole double throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. With th.

PI3A268SC Datasheet (452.37 KB)

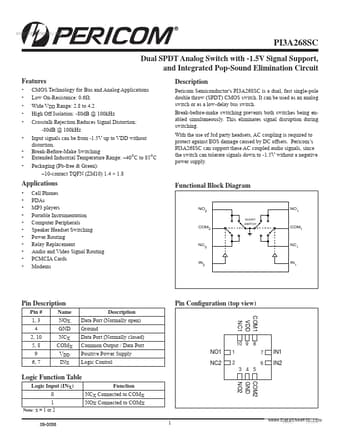

Preview of PI3A268SC PDF

Datasheet Details

Part number:

PI3A268SC

Manufacturer:

Pericom Semiconductor Corporation

File Size:

452.37 KB

Description:

Dual spdt.
