PI3A125TX SOTINY Low Voltage SPST Analog Switch/Bus Switch

PI3A125TX Description

12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 123456789.
The PI3A125 is a high-speed CMOS SPST switch that can be used in analog or low-delay bus switch applications.

PI3A125TX Features

* Low Voltage, SPST Switch
* VCC from 2.3V to 3.6V
* Low On-Resistance: 6 ohms at 3.0V

PI3A125TX Applications

* Rail-to-Rail Signal Range
* Low Power: 30µW at 3.0V
* High Speed: 4ns
* High Off Isolation: 65dB at 1MHz
* High Bandwidth: 250MHz
* Extended Industrial Temperature Range: -40°C to 85°C
* Improved, Direct Replacement for SN74CBTLV1G125

📥 Download Datasheet

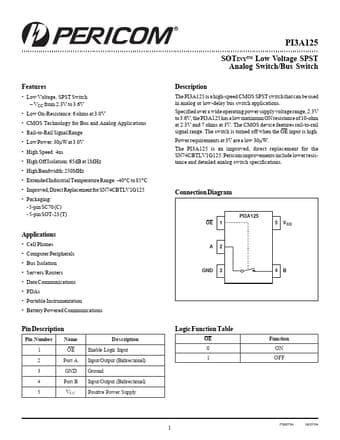

Preview of PI3A125TX PDF
datasheet Preview Page 2 datasheet Preview Page 3
