PI3B3126 - 2-Port Nanoswitch w/Individual Enables

This page provides the datasheet information for the PI3B3126, a member of the PI3B3125 2-Port Nanoswitch w/Individual Enables family.

Datasheet Summary

Description

Diodes' PI3B series of logic circuits are produced using the Company’s advanced sub micron CMOS technology, achieving industry leading speed grades.

Features

  • ¼¼Near zero propagation delay ¼¼5 Ohm switches connect inputs to outputs ¼¼Fast Switching Speed - 4ns max. ¼¼Ultra Low Quiescent Power (0.1µA Typical).
  • Ideally suited for notebook.

📥 Download Datasheet

Datasheet preview – PI3B3126

Datasheet Details

Part number PI3B3126
Manufacturer Pericom Semiconductor
File Size 1.40 MB
Description 2-Port Nanoswitch w/Individual Enables
Datasheet download datasheet PI3B3126 Datasheet
Additional preview pages of the PI3B3126 datasheet.

📁 Similar Datasheet

  • PI3B32160 - 3.3V/ Low Capacitance 16-Bit to 32-Bit/ DeMux NanoSwitch with Precharged Outputs (Pericom Semiconductor Corporation)
  • PI3B32384 - 10-Bit 2-Port NanoSwitch (Pericom Semiconductor Corporation)
  • PI3B3244 - 3.3V/ Hot Insertion/ 8-Bit/ 2-Port NanoSwitch (Pericom Semiconductor Corporation)
  • PI3B3245 - 8-Bit 2-Port NanoSwitch (Pericom Semiconductor Corporation)
  • PI3B3245 - 3.3V Hot Insertion 8-Bit 2-Port NanoSwitch (DIODES)
  • PI3B3251 - 8:1 Mux/DeMux NanoSwitch (Pericom Semiconductor Corporation)
  • PI3B3253 - Mux/DeMux NanoSwitch (Pericom Semiconductor Corporation)
  • PI3B3253 - 3.3V Dual 4:1 Mux/DeMux (Diodes)
  • PI3B3257 - 3.3V Quad 2:1 Mux/DeMux (Diodes)
  • PI3B3257 - Quad 2:1 Mux/Demux Bus Switch (Pericom Semiconductor Corporation)
Other Datasheets by Pericom Semiconductor

Full PDF Text Transcription

Click to expand full text

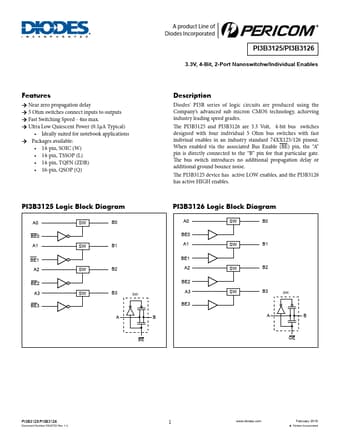

A product Line of Diodes Incorporated PI3B3125/PI3B3126 3.3V, 4-Bit, 2-Port Nanoswitchw/Individual Enables Features ¼¼Near zero propagation delay ¼¼5 Ohm switches connect inputs to outputs ¼¼Fast Switching Speed - 4ns max. ¼¼Ultra Low Quiescent Power (0.1µA Typical) • Ideally suited for notebook applications ¼¼ Packages available: • 14-pin, SOIC (W) • 14-pin, TSSOP (L) • 14-pin, TQFN (ZDB) • 16-pin, QSOP (Q) Description Diodes' PI3B series of logic circuits are produced using the Company’s advanced sub micron CMOS technology, achieving industry leading speed grades. The PI3B3125 and PI3B3126 are 3.3 Volt, 4-bit bus switches designed with four individual 5 Ohm bus switches with fast indiviual enables in an industry standard 74XX125/126 pinout.
