PI3B3244 Datasheet, Nanoswitch, Pericom Semiconductor Corporation

PI3B3244 Features

  • Nanoswitch
  • Near-Zero propagation delay 5-ohm switches connect inputs to outputs when enabled Fast Switching Speed - 4.5ns max. Ultra-Low Quiescent Power (0.

PDF File Details

Part number:

PI3B3244

Manufacturer:

Pericom Semiconductor Corporation

File Size:

187.00kb

Download:

📄 Datasheet

Description:

3.3v/ hot insertion/ 8-bit/ 2-port nanoswitch. Pericom Semiconductor’s PI3B series of logic circuits are produced using the Company’s advanced sub-micron CMOS technology, achieving

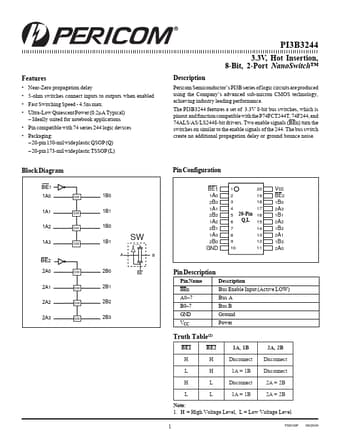

Datasheet Preview: PI3B3244 📥 Download PDF (187.00kb)
Page 2 of PI3B3244 Page 3 of PI3B3244

PI3B3244 Application

  • Applications
  • Pin compatible with 74 series 244 logic devices
  • Packaging:
      – 20-pin 150-mil wide plastic QSOP (Q) <
