PI3B3861 Datasheet, Nanoswitch, Pericom Semiconductor

PI3B3861 Features

  • Nanoswitch
  • Near-Zero propagation delay 5-ohm switches connect inputs to outputs Fast Switching Speed - 4.5ns (max.) Ultra Low Quiescent Power (0.1µA Typical

PDF File Details

Part number:

PI3B3861

Manufacturer:

Pericom Semiconductor

File Size:

200.60kb

Download:

📄 Datasheet

Description:

Nanoswitch. Pericom’s Semiconductor’s PI3B3861 is a 10-bit, 3.3 volt, 2-port bus switch designed with a low On-Resistance (5-ohm) allowing inputs

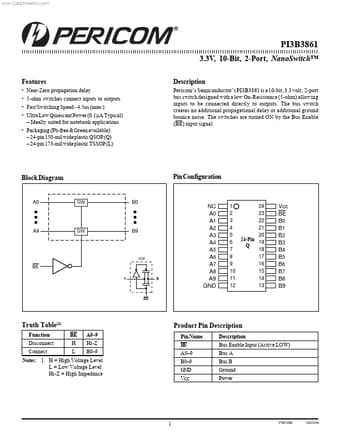

Datasheet Preview: PI3B3861 📥 Download PDF (200.60kb)
Page 2 of PI3B3861 Page 3 of PI3B3861

PI3B3861 Application

  • Applications
  • Packaging (Pb-free & Green available):
      – 24-pin 150-mil wide plastic QSOP (Q)
      – 24-pin 173-mi
