PI3B3253 Datasheet - Pericom Semiconductor Corporation

Mux/DeMux NanoSwitch

PI3B3253 Features

* Near-Zero propagation delay

* 5Ω switches connect inputs to outputs

* Fast Switching Speed: 5.2ns max. Ultra Low Quiescent Power (0.2µA typical)

* Ideally suited for notebook applications Pin compatible with 74 series 253 logic devices Descripti

PI3B3253 General Description

Pericom Semiconductor’s PI3B3253 is a 3.3V, Dual4:1 Multiplexer/ Demultiplexer with Hi-Z outputs that is pinout compatible with the PI74FCT253T, 74F253, and 74ALS/AS/LS 253. Inputs can be connected to outputs with low On-Resistance (5Ω) with no additional ground bounce noise or propagation delay. <.

PI3B3253 Datasheet (354.75 KB)

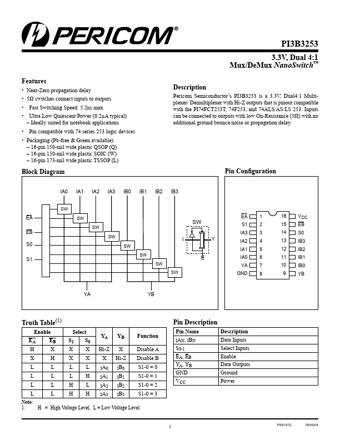

PI3B3253 Datasheet Preview — Preview of PI3B3253 PDF

Datasheet Details

Part number:

PI3B3253

Manufacturer:

Pericom Semiconductor Corporation

File Size:

354.75 KB

Description:

Mux/demux nanoswitch.
