PI3B32160

3.3V/ Low Capacitance 16-Bit to 32-Bit/ DeMux NanoSwitch with Precharged Outputs

PI3B32160 Features

* • RON is 5Ω typical • Pullup on B1 and B2 ports • Low Power: 50µW typical • Industrial Operation Temperature: –40ºC to +85ºC • Near Zero propagation delay • Switching speed: 4.5ns max. • Channel on capacitance: 14pF max. • VCC Operating Range: 3V to +3.6V • Package available: 56-pin TSSOP (A) Produ

PI3B32160 General Description

Pericom Semiconductor’s PI3B series of logic circuits are produced using the Company’s advanced submicron CMOS technology, achieving industry leading performance. The PI3B32160 is a 16-bit to 32-bit demultiplexer bus switch. Industry leading advantages include a propagation delay of 250ps, resulting.

PI3B32160 Datasheet (296.44 KB)

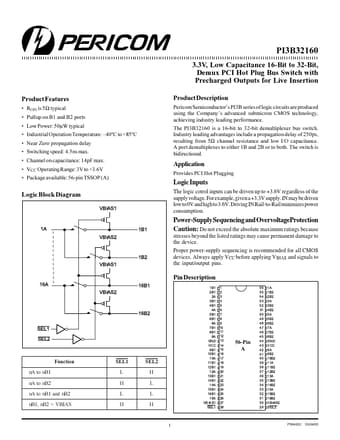

Preview of PI3B32160 PDF

Datasheet Details

Part number:

PI3B32160

Manufacturer:

Pericom Semiconductor Corporation

File Size:

296.44 KB

Description:

3.3v/ low capacitance 16-bit to 32-bit/ demux nanoswitch with precharged outputs.
12345678901234567890123456789012123456789012345678901234567890121234567890123456789012345678901212345678901234567890123456789012123456789012 123456789.
