ZXTP2012G Datasheet, Transistor, Diodes

ZXTP2012G Features

  • Transistor
  • BVCEO > -60V
  • IC = -5.5A Continuous Collector Current
  • ICM = -15A Peak Pulse Current
  • Low Saturation Voltage VCE(SAT) < -70mV Max @ -1A
  • RS

PDF File Details

Part number:

ZXTP2012G

Manufacturer:

DIODES ↗

File Size:

434.36kb

Download:

📄 Datasheet

Description:

60v pnp medium power low saturation transistor.

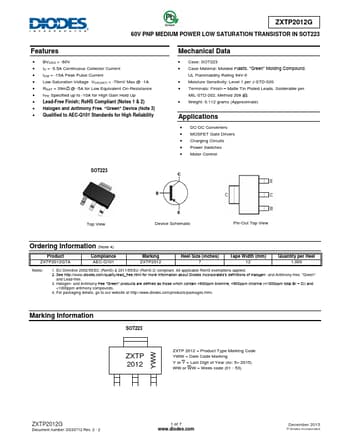

Datasheet Preview: ZXTP2012G 📥 Download PDF (434.36kb)
Page 2 of ZXTP2012G Page 3 of ZXTP2012G

ZXTP2012G Application

  • Applications
  • DC-DC Converters
  • MOSFET Gate Drivers
  • Charging Circuits
  • Power Switches
  • Motor Control
