ZXTP2008G Datasheet, Transistor, Zetex Semiconductors

ZXTP2008G Features

• Transistor
• 5.5 Amps continuous current
• Up to 20 amps peak current
• Very low saturation voltages
• Exceptional gain linearity down to 10mA SOT223 APPLICATIONS

PDF File Details

Part number:

ZXTP2008G

Manufacturer:

Zetex Semiconductors

File Size:

138.41kb

Download:

📄 Datasheet

Description:

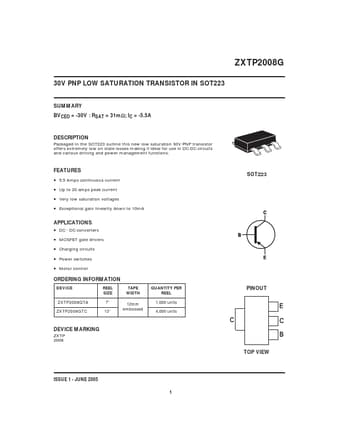

Pnp low saturation transistor. Packaged in the SOT223 outline this new low saturation 30V PNP transistor offers extremely low on state losses making it ideal for us

ZXTP2008G Application

• Applications
• DC - DC converters
• MOSFET gate drivers
• Charging circuits
• Power switches
• Motor control
