ZXTP2009Z Datasheet, Transistor, Zetex Semiconductors

ZXTP2009Z Features

  • Transistor
  • Extremely low equivalent on-resistance
  • 5.5 amps continuous current
  • Up to 15 amps peak current
  • Very low saturation voltages < -60mV @ -1A SOT89

PDF File Details

Part number:

ZXTP2009Z

Manufacturer:

Zetex Semiconductors

File Size:

149.71kb

Download:

📄 Datasheet

Description:

Pnp high gain low saturation medium power transistor. Packaged in the SOT89 outline this new low saturation 40V PNP transistor offers low on state losses making it ideal for use in DC-DC

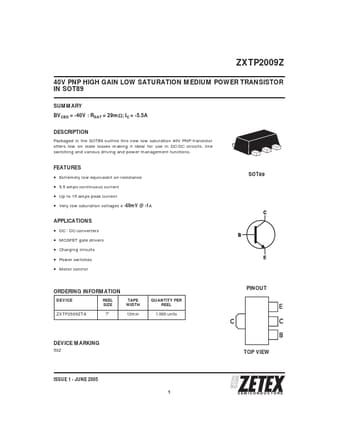

Datasheet Preview: ZXTP2009Z 📥 Download PDF (149.71kb)
Page 2 of ZXTP2009Z Page 3 of ZXTP2009Z

ZXTP2009Z Application

  • Applications
  • DC - DC converters
  • MOSFET gate drivers
  • Charging circuits
  • Power switches
  • Motor control
