ZXTP25020CFH Datasheet, Transistor, Diodes

ZXTP25020CFH Features

  • Transistor
  • BVCEO > -20V
  • BVECO > -7V
  • IC = -4A Continuous Collector Current
  • VCE(sat) < -55mV @ -1A
  • RCE(sat) = 34mΩ
  • High Peak Current

PDF File Details

Part number:

ZXTP25020CFH

Manufacturer:

DIODES ↗

File Size:

426.41kb

Download:

📄 Datasheet

Description:

20v pnp low power transistor.

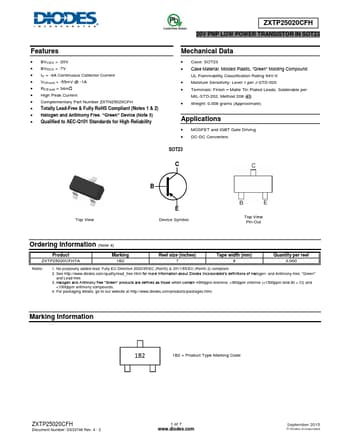

Datasheet Preview: ZXTP25020CFH 📥 Download PDF (426.41kb)
Page 2 of ZXTP25020CFH Page 3 of ZXTP25020CFH

ZXTP25020CFH Application

  • Applications
  • MOSFET and IGBT Gate Driving
  • DC-DC Converters SOT23 C B Top View E Device Symbol Top View Pin-Out Ordering I
