ZXTP25012EZTA Datasheet, Transistor, Zetex Semiconductors

ZXTP25012EZTA Features

• Transistor
• 4.5A continuous current
• Up to 10A peak current
• Very low saturation voltages
• High gain B C E Applications
• High side switch

PDF File Details

Part number:

ZXTP25012EZTA

Manufacturer:

Zetex Semiconductors

File Size:

318.85kb

Download:

📄 Datasheet

Description:

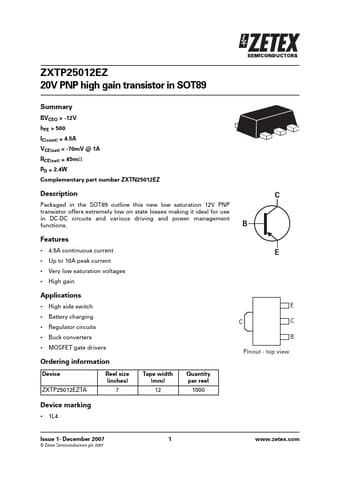

20v pnp high gain transistor. Packaged in the SOT89 outline this new low saturation 12V PNP transistor offers extremely low on state losses making it ideal for use

ZXTP25012EZTA Application

• Applications
• High side switch
• Battery charging
• Regulator circuits
• Buck converters
• MOSFET gate driv
