ZXTP25100CZ Datasheet - Diodes

ZXTP25100CZ 100V PNP MEDIUM POWER TRANSISTOR

ZXTP25100CZ Features

* BVCEO > -100V

* BVECO > -7V

* IC = -1A Continuous Collector Current

* ICM = -3A Peak Collector Current

* VCE(SAT) < -225mV @ -1A

* RCE(SAT) = 155mΩ for a Low Equivalent On-Resistance

* Complementary NPN Type: ZXTN25100DZ

* Totally Lead-Free & Fully RoHS compliant (N

ZXTP25100CZ-Diodes.pdf

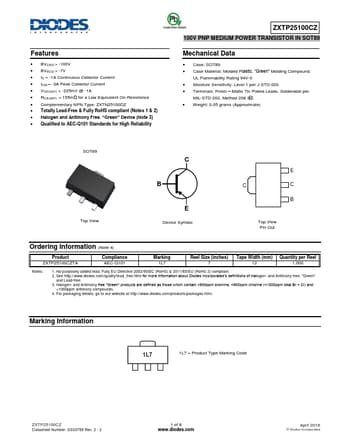

Preview of ZXTP25100CZ PDF
ZXTP25100CZ Datasheet Preview Page 2 ZXTP25100CZ Datasheet Preview Page 3

Datasheet Details

Part number:

ZXTP25100CZ

Manufacturer:

DIODES ↗

File Size:

395.17 KB

Description:

100v pnp medium power transistor.
