* High power dissipation SOT23 package 180V forward blocking voltage Low saturation voltage E Applications
* DC-DC converters High side switching Ordering information Device ZXTP25140BFHTA Reel size (inches) 7 Tape width 8mm Quan
ZXTP25140BFH Datasheet (410.60 KB)
ZXTP25140BFH
Zetex Semiconductors
410.60 KB
Pnp transistor.

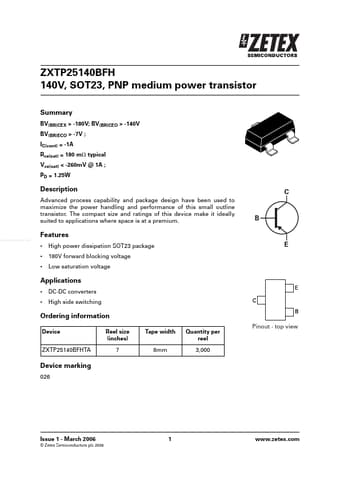

ZXTP25140BFH 140V, SOT23, PNP medium power transistor
Summary
BV(BR)CEX > -180V; BV(BR)CEO > -140V BV(BR)ECO > -7V ; IC(cont) = -1A Rce(sat) = 180 m⍀ .
