ZXTP25020BFH Datasheet, Transistor, Zetex Semiconductors

ZXTP25020BFH Features

• Transistor
• High power dissipation SOT23 package
• High peak current
• Low saturation voltage
• 40V forward blocking voltage
• 7V reverse blocking voltage

PDF File Details

Part number:

ZXTP25020BFH

Manufacturer:

Zetex Semiconductors

File Size:

379.12kb

Download:

📄 Datasheet

Description:

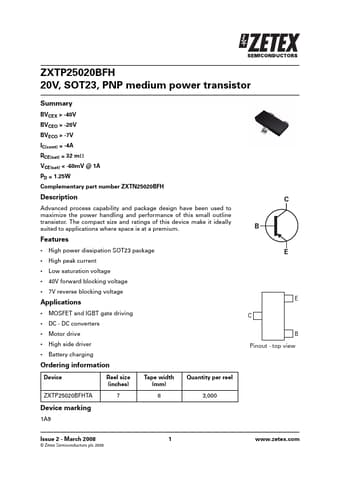

Pnp transistor. Advanced process capability and package design have been used to maximize the power handling and performance of this small outline tr

ZXTP25020BFH Application

• Applications where space is at a premium. Features
• High power dissipation SOT23 package
• High peak current
• Low saturat
