ZXTP25100CFH, 100V PNP MEDIUM POWER TRANSISTOR

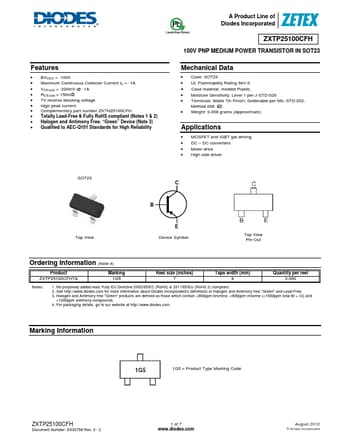

datasheet Preview Page 1 from Datasheet4u.com

ZXTP25100CFH-Diodes.pdf

ZXTP25100CFH Datasheet Preview — Preview of ZXTP25100CFH PDF

Datasheet Details

Part number:

ZXTP25100CFH

Manufacturer:

DIODES ↗

File Size:

184.96 KB

Description:

100V PNP MEDIUM POWER TRANSISTOR

Features

* BVCEO > -100V
* Maximum Continuous Collector Current IC = -1A
* VCE(sat) < -220mV @ -1A
* RCE(sat) = 150mΩ
* 7V reverse blocking voltage
* High peak current
* Complementary part number ZXTN25100CFH
* Totally Lead-Free & Fully RoHS com

Applications

* MOSFET and IGBT gat driving
* DC
* DC converters
* Motor drive
* High side driver SOT23 Top View C B E Device Symbol Top View Pin-Out Ordering Information (Note 4) Product ZXTP25100CFHTA Marking 1G5 Reel size (inches) 7 Tape width (mm) 8 Quantity pe
