ZXTP25020CFF Datasheet, Transistor, Diodes

ZXTP25020CFF Features

  • Transistor
  • BVCEO > -20V
  • BVECO > -7V
  • IC = -4.5A Continuous Collector Current
  • Low Saturation Voltage VCE(SAT) < -65mV @ -1A
  • RCE(SAT) = 41m

PDF File Details

Part number:

ZXTP25020CFF

Manufacturer:

DIODES ↗

File Size:

351.02kb

Download:

📄 Datasheet

Description:

Pnp medium power transistor. Advanced process capability and packaging maximize the power handling and performance of this small outline transistor. The reverse b

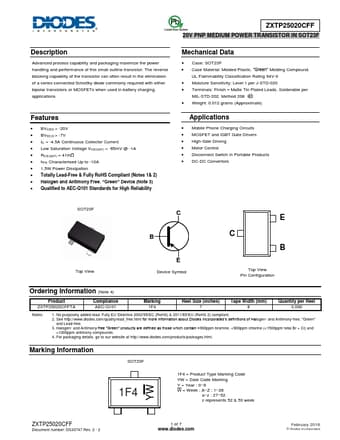

Datasheet Preview: ZXTP25020CFF 📥 Download PDF (351.02kb)
Page 2 of ZXTP25020CFF Page 3 of ZXTP25020CFF

ZXTP25020CFF Application

  • Applications Features
  • BVCEO > -20V
  • BVECO > -7V
  • IC = -4.5A Continuous Collector Current
  • Low Saturation Volta
