ZXTP2013Z Datasheet, Transistor, Zetex Semiconductors

ZXTP2013Z Features

• Transistor
• 3.5 amps continuous current
• Up to 10 amps peak current
• Very low saturation voltages SOT89 APPLICATIONS
• Motor driving www.DataSheet4U.com

PDF File Details

Part number:

ZXTP2013Z

Manufacturer:

Zetex Semiconductors

File Size:

118.07kb

Download:

📄 Datasheet

Description:

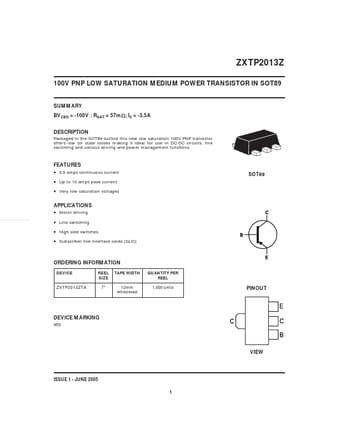

Pnp low saturation medium power transistor. Packaged in the SOT89 outline this new low saturation 100V PNP transistor offers low on state losses making it ideal for use in DC-DC

ZXTP2013Z Application

• Applications
• Motor driving www.DataSheet4U.com
• Line switching
• High side switches
• Subscriber line interface
