ZXTPS717MCTA, ZXTPS717MC, 12V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION

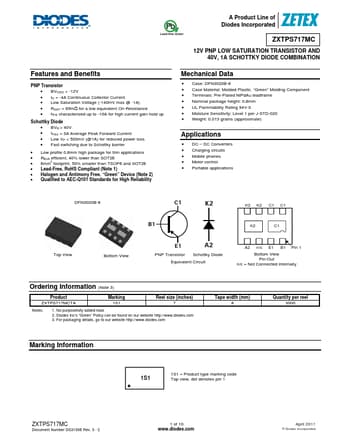

datasheet Preview Page 1 from Datasheet4u.com

ZXTPS717MC-Diodes.pdf

ZXTPS717MCTA Datasheet Preview — This datasheet PDF includes multiple part numbers: ZXTPS717MCTA, ZXTPS717MC. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ZXTPS717MCTA, ZXTPS717MC

Manufacturer:

DIODES ↗

File Size:

232.43 KB

Description:

12V PNP LOW SATURATION TRANSISTOR AND 1A SCHOTTKY DIODE COMBINATION

Note:

This datasheet PDF includes multiple part numbers: ZXTPS717MCTA, ZXTPS717MC.
Please refer to the document for exact specifications by model.

Features

* PNP Transistor
* BVCEO > -12V
* IC = -4A Continuous Collector Current
* Low Saturation Voltage (-140mV max @ -1A)
* RSAT = 65mΩ for a low equivalent On-Resistance
* hFE characterized up to -10A for high current gain hold up Schottky Diode
* BVR > 40V

Applications

* RθJA efficient, 40% lower than SOT26
* 6mm2 footprint, 50% smaller than TSOP6 and SOT26
* Lead-Free, RoHS Compliant (Note 1)
* Halogen and Antimony Free. “Green” Device (Note 2)
* Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes
