ZXTP03200BG - 200V PNP transistor

Diodes

📥 Download Datasheet

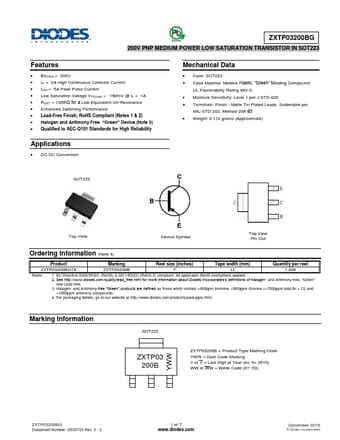

ZXTP03200BG Datasheet Preview — Preview of ZXTP03200BG PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTP03200BG
Manufacturer	DIODES
File Size	427.28 KB
Description	200V PNP transistor
Datasheet	ZXTP03200BG-Diodes.pdf

ZXTP03200BG Product details

Features

BVCEO > -200V.
IC = -2A High Continuous Collector Current.
ICM = -5A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < -160mV @ IC = -1A.
RSAT = 135mΩ for a Low Equivalent On-Resistance.
Enhanced Switching Performance.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability.
