ZXTP03200BZ - 200V PNP LOW Vce TRANSISTOR

Diodes

📥 Download Datasheet

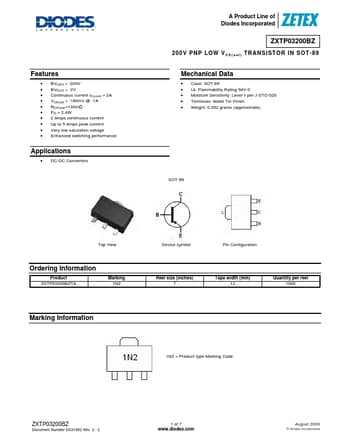

ZXTP03200BZ Datasheet Preview — Preview of ZXTP03200BZ PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ZXTP03200BZ
Manufacturer	DIODES
File Size	293.06 KB
Description	200V PNP LOW Vce TRANSISTOR
Datasheet	ZXTP03200BZ-Diodes.pdf

ZXTP03200BZ Product details

Features

BVCEO > -200V.
BVECO > -2V.
Continuous current IC(cont) = 2A.
VCE(sat < -160mV @ -1A.
RCE(sat)=130mΩ.
PD = 2.4W.
2 Amps continuous current.
Up to 5 Amps peak current.
Very low saturation voltage.
Enhanced switching performance.
