ZXTP19020CFF - 20V PNP LOW SATURATION VOLTAGE TRANSISTOR

ZXTP19020CFF Description

ZXTP19020CFF 20V PNP LOW SATURATION VOLTAGE TRANSISTOR IN SOT23F .
This low voltage PNP transistor has been designed for applications requiring high gain and very low saturation voltage.

ZXTP19020CFF Features

* BVCEO > -20V
* BVECO > -5V
* IC = -5A Continuous Collector Current
* IC = -10A Peak Pulse Collector Current
* Low Saturation Voltage VCE(SAT) < -40mV @ -1A
* 1.5W Power Dissipation
* Complementary NPN Type: ZXTN19020CFF
* Totally Lead-Free & Fully RoHS Compliant (No

ZXTP19020CFF Applications

* requiring high gain and very low saturation voltage. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. Mechanical Data
* Case: SOT23F
* Case Material:

📥 Download Datasheet

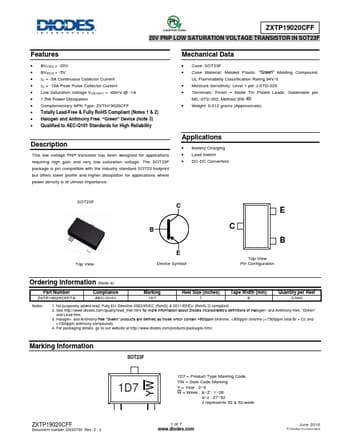

Preview of ZXTP19020CFF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZXTP19020CFF
Manufacturer
DIODES ↗
File Size
320.30 KB
Datasheet
ZXTP19020CFF-Diodes.pdf
Description
20V PNP LOW SATURATION VOLTAGE TRANSISTOR
