ZXTP19020DZ - 20V PNP HIGH GAIN TRANSISTOR

ZXTP19020DZ Description

A Product Line of Diodes Incorporated ZXTP19020DZ 20V PNP HIGH GAIN TRANSISTOR IN SOT89 .

ZXTP19020DZ Features

* BVCEO > -20V
* High current capability Max Continuous Current IC = -6A
* Low saturation voltage VCE(sat) < -47mV @ IC = -1A
* RCE(sat) = 28mΩ
* PD = 2.4W
* Complementary part number ZXTN19020DZ
* Lead Free, RoHS Compliant (Note 1)
* H

ZXTP19020DZ Applications

* shall assume all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated website, harmless against all damages. Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchase

📥 Download Datasheet

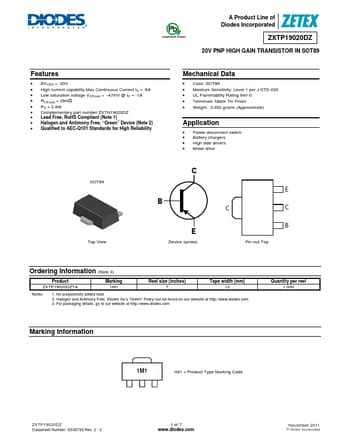

Preview of ZXTP19020DZ PDF
datasheet Preview Page 2 datasheet Preview Page 3
