ZXTP19020DFF - PNP MEDIUM POWER TRANSISTOR

ZXTP19020DFF Description

ZXTP19020DFF 20V PNP MEDIUM POWER TRANSISTOR IN SOT23F .
Advanced process capability and package design have been used to maximize the power handling and performance of this small outline transistor.

ZXTP19020DFF Features

* BVCEO > -20V
* BVECO > -4V
* IC = -5.5A Continuous Collector Current
* ICM = -15A Peak Current
* Guaranteed Gain at IC of -10A
* VCE(SAT) < -44mV @ -1A
* RCE(SAT) = 26mΩ
* 1.5W Power Dissipation
* Complementary PNP Type: ZXTN19020DFF
* Totally Lead-Free & Fu

ZXTP19020DFF Applications

* where space is at a premium. Mechanical Data
* Case: SOT23F
* Case Material: Molded Plastic. ―Green‖ Molding Compound. UL Flammability Classification Rating 94V-0
* Moisture Sensitivity: Level 1 per J-STD-020
* Terminals: Finish
* Matte Tin Plated Leads, Solderable per MIL-S

📥 Download Datasheet

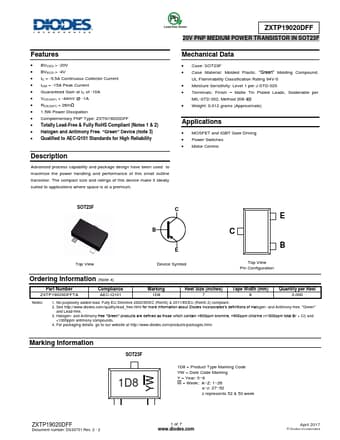

Preview of ZXTP19020DFF PDF
