ZXTP19060CZ, 60V PNP medium transistor

ZXTP19060CZ 60V PNP medium transistor in SOT89 Summary BVCEO > -60V BVECO > -7V IC(cont) = 4.5A VCE(sat) < -80mV @ -1A RCE(sat) = 50m⍀ PD = 2.4W Comp.
Packaged in the SOT89 outline this new low saturation PNP transistor offers extremely low on state losses making it ideal for use in DC-DC circuits an.

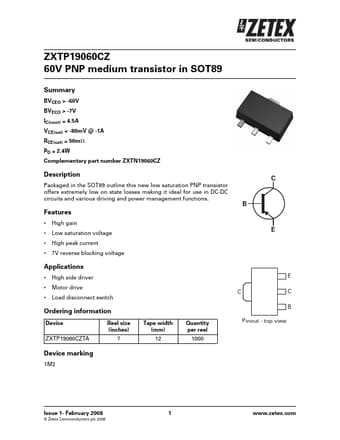

datasheet Preview Page 1 from Datasheet4u.com

ZXTP19060CZ-ZetexSemiconductors.pdf

ZXTP19060CZ Datasheet Preview — Preview of ZXTP19060CZ PDF

Datasheet Details

Part number:

ZXTP19060CZ

Manufacturer:

Zetex Semiconductors

File Size:

231.38 KB

Description:

60V PNP medium transistor

Features

* High gain
* Low saturation voltage
* High peak current

Applications

* High side driver
* Motor drive
* Load disconnect switch Ordering information Device ZXTP19060CZTA Reel size (inches) 7 Tape width (mm) 12 Quantity per reel 1000 E CC B Pinout - top view Device marking 1M2 Issue 1- February 2008 © Zetex Semiconductors plc 2008 1 ww
