ZXTP19060CGTA, ZXTP19060CG - 60V PNP MEDIUM POWER TRANSISTOR

ZXTP19060CGTA Description

.

ZXTP19060CGTA Features

* BVCEO > -60V
* BVECO > -7V
* IC = 5A High Continuous Current
* Low Saturation Voltage VCE(sat) < -80mV @ 1A
* RCE(sat) = 50mΩ
* Complementary PNP Type: ZXTN19060CG
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

ZXTP19060CGTA Applications

* Motor Drive
* High Side Driver SOT223 Top View C B E Device Symbol E CC B Top View Pin-Out Ordering Information (Note 4) Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel ZXTP19060CGTA AEC-Q101 ZXTP19060C 7 12 1,000 Notes: 1. EU Directive 2002/

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ZXTP19060CGTA, ZXTP19060CG. Please refer to the document for exact specifications by model.

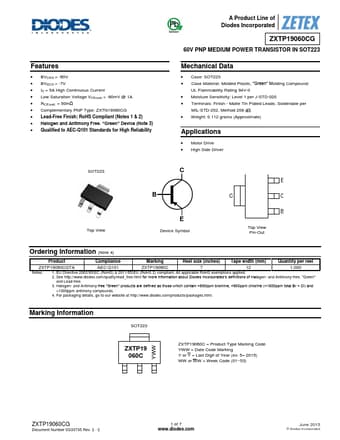

datasheet Preview Page 2 datasheet Preview Page 3
