ZXTP19020DG - 20V PNP HIGH GAIN TRANSISTOR

ZXTP19020DG Description

.

ZXTP19020DG Features

* BVCEO > -20V
* BVECO > -4V
* IC = 8A High Continuous Current
* Low Saturation Voltage VCE(sat) < -47mV @ 1A
* RCE(sat) = 28mΩ
* Complementary PNP Type: ZXTN19020DG
* Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)

ZXTP19020DG Applications

* Motor Drive
* Relay, Lamp and Solenoid Drive SOT223 Top View C B E Device Symbol E CC B Top View Pin-Out Ordering Information (Note 4) Product Compliance Marking Reel size (inches) Tape width (mm) Quantity per reel ZXTP19020DGTA AEC-Q101 ZXTP19020D 7 12 1,000 Notes: 1. EU D

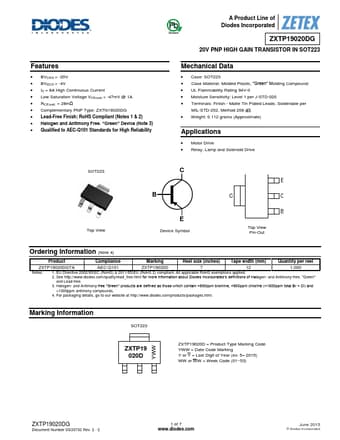

📥 Download Datasheet
