ZXTP07012EFF PNP TRANSISTOR

ZXTP07012EFF Description

ZXTP07012EFF 12V PNP LOW SATURATION TRANSISTOR IN SOT23F .
This low voltage PNP transistor has been designed for applications requiring high gain and very low saturation voltage.

ZXTP07012EFF Features

* BVCEO > -12V
* IC = -4A Continuous Collector Current
* Low Saturation Voltage VCE(SAT) < 75mV @ 1A
* RCE(SAT) = 50mΩ
* hFE Characterised Up to -6A
* High hFE Min 400 @ 1A
* 1.5W Power Dissipation
* Complementary NPN Type: ZXTN07012EFF
* Totally Lead-Free & Fully

ZXTP07012EFF Applications

* requiring high gain and very low saturation voltage. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. Mechanical Data
* Case: SOT23F
* Case Material:

📥 Download Datasheet

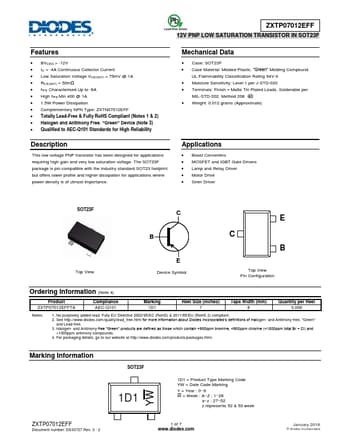

Preview of ZXTP07012EFF PDF
