ZXTP08400BFF 400V PNP MEDIUM POWER HIGH VOLTAGE TRANSISTOR

ZXTP08400BFF Description

ZXTP08400BFF 400V PNP MEDIUM POWER HIGH VOLTAGE TRANSISTOR IN SOT23F .
This PNP transistor is designed for applications requiring high blocking voltage.

ZXTP08400BFF Features

* BVCEO > -400V
* BVECO > -6V
* IC = -0.2A Continuous Collector Current
* Low Saturation Voltage VCE(SAT) < -220mV @ -100mA
* hFE Min 100 @ -200mA
* 1.5W Power Dissipation
* Complementary NPN Type: ZXTN08400BFF
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

ZXTP08400BFF Applications

* requiring high blocking voltage. The SOT23F package is pin compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. SOT23F C E BC Top View E Device symbol B Top View Pin Configuration O

📥 Download Datasheet

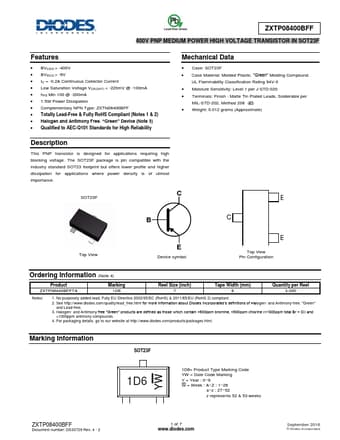

Preview of ZXTP08400BFF PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ZXTP08400BFF
Manufacturer
DIODES ↗
File Size
386.44 KB
Datasheet
ZXTP08400BFF-Diodes.pdf
Description
400V PNP MEDIUM POWER HIGH VOLTAGE TRANSISTOR
