ZXTP19020CFF Datasheet - Zetex Semiconductors

PNP medium power transistor

ZXTP19020CFF Features

* High gain Low saturation voltage Low profile high dissipation package E E Applications

* Battery charging Load switch DC-DC converters C B Pinout - top view Ordering information Device ZXTP19020CFFTA Reel size (inches) 7 Tape width (mm)

ZXTP19020CFF General Description

Advanced process capability has been used to maximize the performance of this transistor. The SOT23F package is compatible with the industry standard SOT23 footprint but offers lower profile and higher dissipation for applications where power density is of utmost importance. www.DataSheet4U.com C .

ZXTP19020CFF Datasheet (457.93 KB)

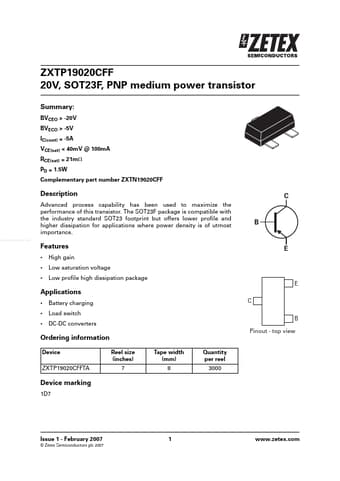

ZXTP19020CFF Datasheet Preview — Preview of ZXTP19020CFF PDF

Datasheet Details

Part number:

ZXTP19020CFF

Manufacturer:

Zetex Semiconductors

File Size:

457.93 KB

Description:

Pnp medium power transistor.
ZXTP19020CFF 20V, SOT23F, PNP medium power transistor Summary: BVCEO > -20V BVECO > -5V IC(cont) = -5A VCE(sat) < 40mV @ 100mA RCE(sat) = 21m⍀ PD = 1..
