ZXTR2008Z Datasheet, Transistor, Diodes

ZXTR2008Z Features

  • Transistor
  • Series Linear Regulator Using Emitter-Follower Stage
  • Input Voltage = 12V to 100V
  • Output Voltage = 8.2V ± 10%
  • Fully integrated into a SOT89 packag

PDF File Details

Part number:

ZXTR2008Z

Manufacturer:

DIODES ↗

File Size:

320.63kb

Download:

📄 Datasheet

Description:

8.2v 30ma regulator transistor. The ZXTR2008Z monolithically integrates a transistor, Zener diode and resistor to function as a high voltage linear regulator. The de

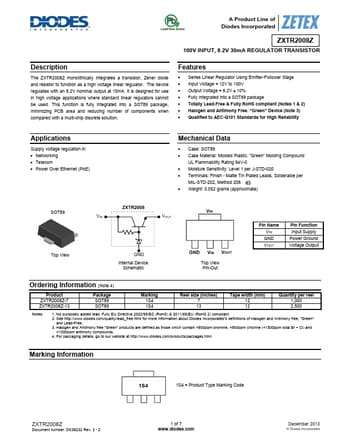

Datasheet Preview: ZXTR2008Z 📥 Download PDF (320.63kb)
Page 2 of ZXTR2008Z Page 3 of ZXTR2008Z

ZXTR2008Z Application

  • Applications where standard linear regulators cannot be used. This function is fully integrated into a SOT89 package, minimizing PCB area and reduci
