ZXT10N15DE6 Datasheet - Zetex Semiconductors

ZXT10N15DE6 15V NPN SILICON LOW SATURATION SWITCHING TRANSISTOR

ZXT10N15DE6 Features

* Low Equivalent On Resistance Extremely Low Saturation Voltage hFE characterised up to 12A IC=4A Continuous Collector Current SOT23-6 package SOT23-6 APPLICATIONS DC - DC Converters Power Management Functions

ZXT10N15DE6_ZetexSemiconductors.pdf

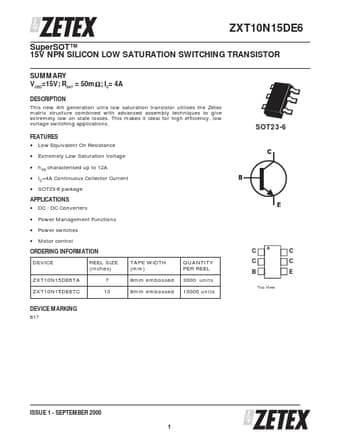

Preview of ZXT10N15DE6 PDF
ZXT10N15DE6 Datasheet Preview Page 2 ZXT10N15DE6 Datasheet Preview Page 3

Datasheet Details

Part number:

ZXT10N15DE6

Manufacturer:

Zetex Semiconductors

File Size:

229.91 KB

Description:

15v npn silicon low saturation switching transistor.
