ZXT2MA

20V PNP LOW SATURATION SWITCHING TRANSISTOR

ZXT2MA Features

* BVCEO > -20V

* IC = -3.5A Continuous Collector Current

* Low Saturation Voltage (-220mV @ -1A)

* RSAT = 64 mΩ for a low equivalent On-Resistance

* hFE specified up to -6A for high current gain hold up

* RθJA efficient, 60% lower than SOT23

ZXT2MA Datasheet (144.29 KB)

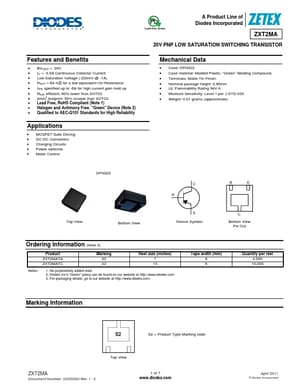

Preview of ZXT2MA PDF

Datasheet Details

Part number:

ZXT2MA

Manufacturer:

DIODES ↗

File Size:

144.29 KB

Description:

20v pnp low saturation switching transistor.
