ZXT10P12DE6 - 12V PNP SILICON LOW SATURATION SWITCHING TRANSISTOR

Zetex Semiconductors

📥 Download Datasheet

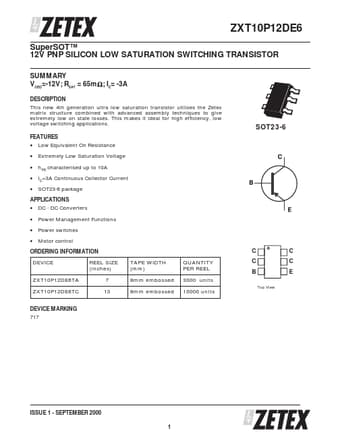

ZXT10P12DE6 Datasheet Preview — Preview of ZXT10P12DE6 PDF

Datasheet Details

Part number: ZXT10P12DE6
Manufacturer: Zetex Semiconductors
File Size: 232.52 KB
Datasheet: ZXT10P12DE6_ZetexSemiconductors.pdf
Description: 12V PNP SILICON LOW SATURATION SWITCHING TRANSISTOR

ZXT10P12DE6 Product details

Description

This new 4th generation ultra low saturation transistor utilises the Zetex matrix structure combined with advanced assembly techniques to give extremely low on state losses.

Features

Low Equivalent On Resistance Extremely Low Saturation Voltage hFE characterised up to 10A IC=3A Continuous Collector Current SOT23-6 package SOT23-6.
