SBT1830 Schottky Barrier Rectifier Diodes

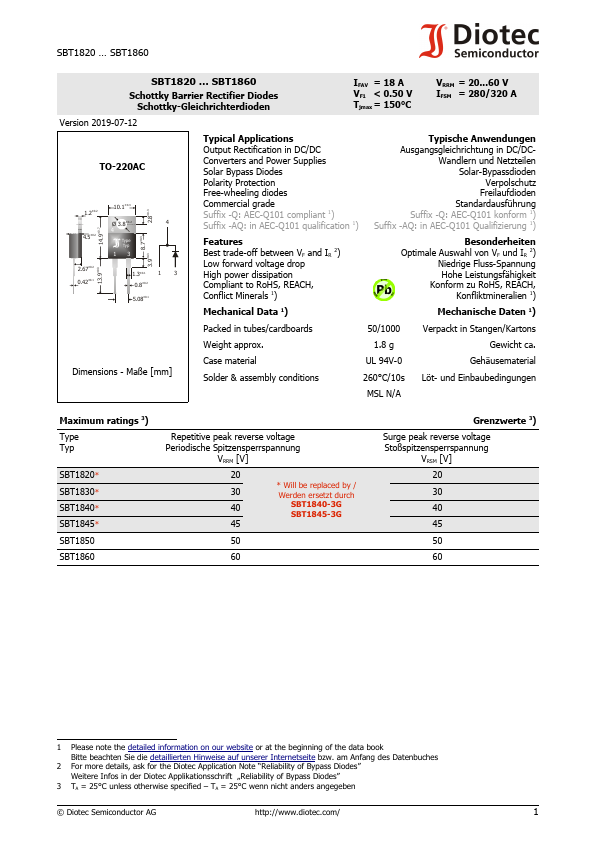

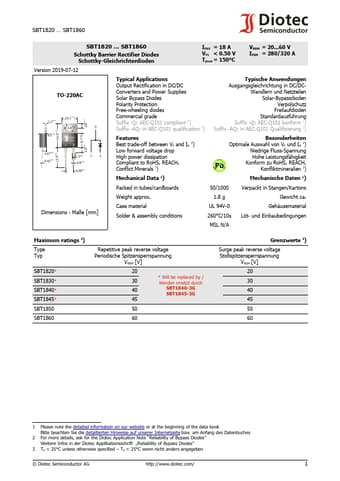

SBT1820 … SBT1860 SBT1820 … SBT1860 Schottky Barrier Rectifier Diodes Schottky-Gleichrichterdioden IFAV = 18 A VF1 < 0.50 V Tjmax = 150°C VRRM = 2060 V IFSM = 280/320 A Version 2019-07-12 TO-220AC 1.2±0.2 4.5±0.2 2.67±0.2 0.42±0.1 13.9±0.3 14.9±0.7 10.1±0.3 2.8±0.3 Ø 3.8±0.2 4 4 Type Typ 13 8.7±0.3 3.9±0.3 1.3±0.1 1 3 0.8±0.2 5.08±0.1 Typical Applications Output Rectification in DC/DC Converters and Power Supplies Solar Bypass Diodes Polarity Protection Free-wheeling diodes .

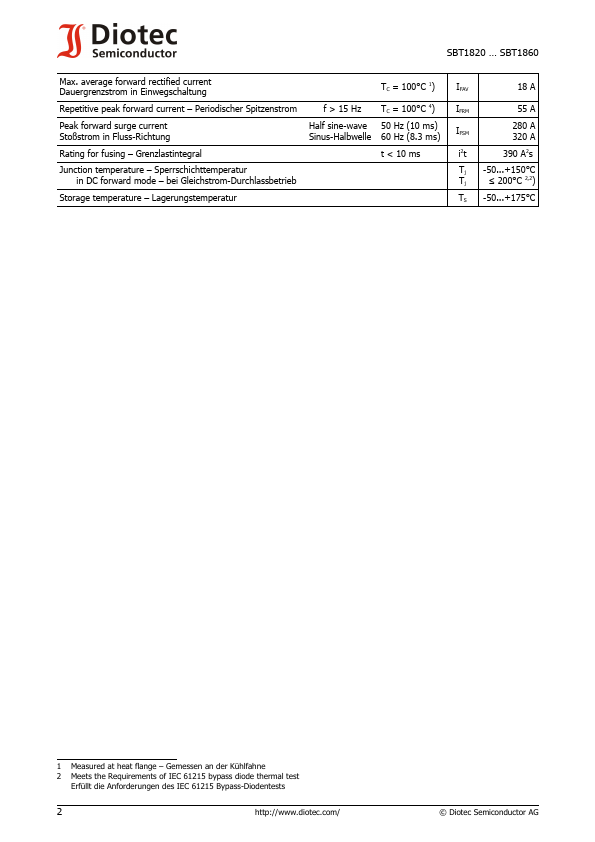

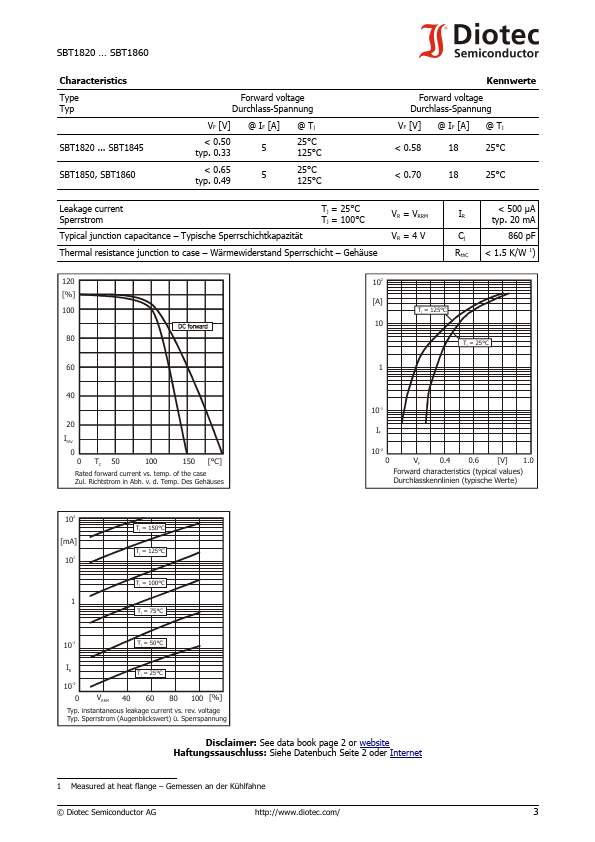

SBT1830 Features

* Best trade-off between VF and IR 2) Low forward voltage drop High power dissipation Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) WEEE Typische Anwendungen Ausgangsgleichrichtung in DC/DC- Wandlern und Netzteilen Solar-Bypassdioden Verpolschutz Freilaufdioden Standardausführung
