SBT1845, SBT1820 Schottky Barrier Rectifier Diodes

Diotec

Description

SBT1820 … SBT1860 SBT1820 … SBT1860 Schottky Barrier Rectifier Diodes Schottky-Gleichrichterdioden IFAV = 18 A VF1 < 0.50 V Tjmax = 150°C VRRM = 20.

📥 Download Datasheet

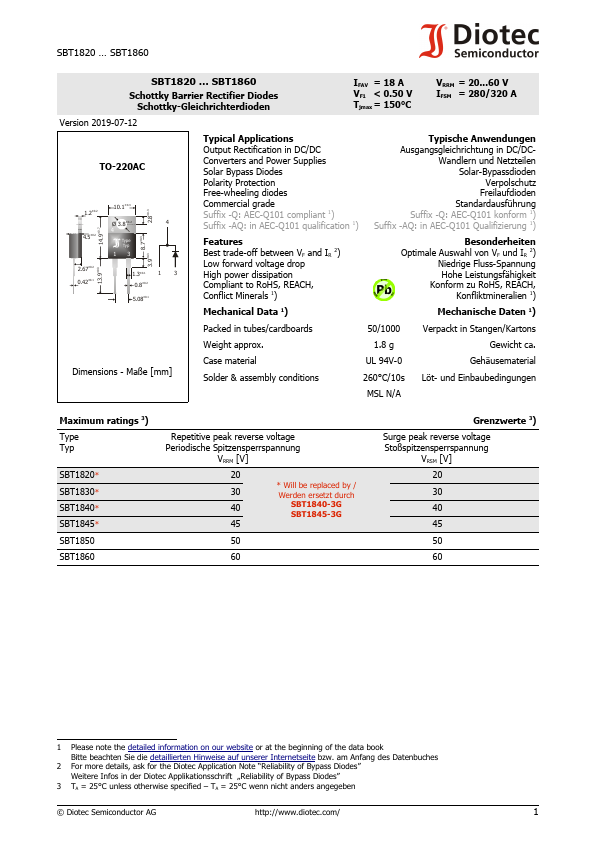

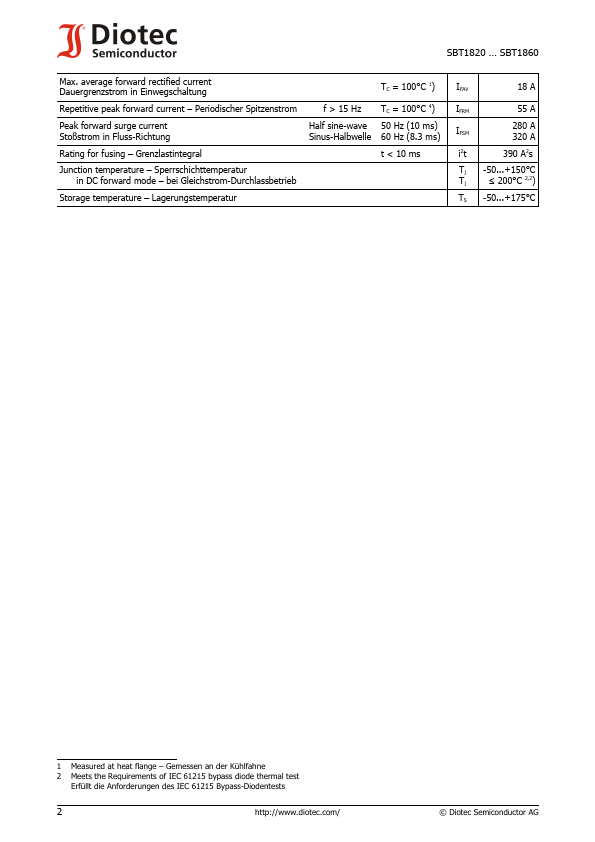

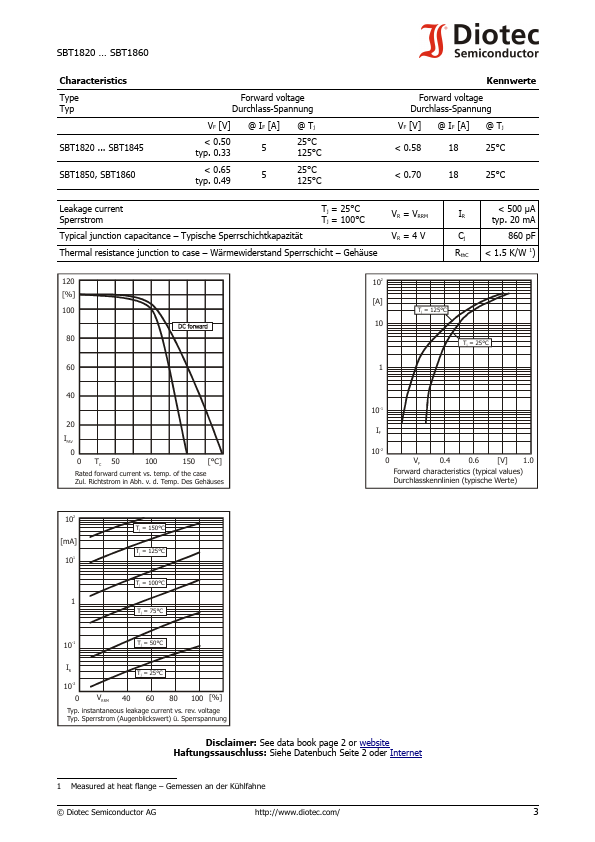

SBT1845 Datasheet Preview — This datasheet PDF includes multiple part numbers: SBT1845, SBT1820. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: SBT1845, SBT1820
Manufacturer: Diotec
File Size: 268.88 KB
Datasheet: SBT1820-Diotec.pdf
Description: Schottky Barrier Rectifier Diodes
Note: This datasheet PDF includes multiple part numbers: SBT1845, SBT1820.
Please refer to the document for exact specifications by model.

Features

* Best trade-off between VF and IR 2) Low forward voltage drop High power dissipation Compliant to RoHS, REACH, Conflict Minerals 1) Mechanical Data 1) WEEE Typische Anwendungen Ausgangsgleichrichtung in DC/DC- Wandlern und Netzteilen Solar-Bypassdioden Verpolschutz Freilaufdioden Standardausführung
