DFP7N60 - N-Channel MOSFET

Datasheet Summary

Description

This N-channel enhancement mode field-effect power transistor using D& I semiconductor’s advanced planar stripe, DMOS technology intended for off-line switch mode power supply.

Also, especially designed to minimize rds(on) and high rugged avalanche characteristics.

Features

  • N-Channel MOSFET { High ruggedness RDS(on) (Max 1.0 Ω )@VGS=10V Gate Charge (Typical 48nC) Improved dv/dt Capability 100% Avalanche Tested 1. Gate { ◀ 2. Drain BVDSS = 600V.
  • ▲.
  • RDS(ON) = 1.0 ohm ID = 7.4A 3. Source { General.

📥 Download Datasheet

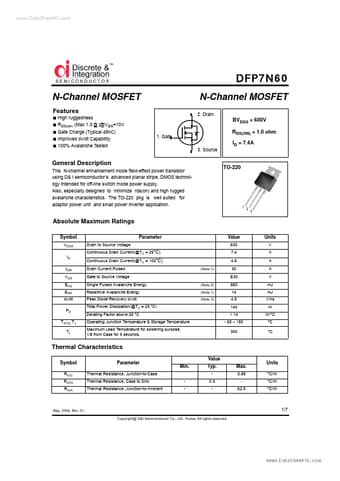

Datasheet preview – DFP7N60
