DK5V45R25S

High Performance Synchronous Rectifier

DK5V45R25S General Description

DK5V45R25S is a simple but high efficiency synchronous rectifier solution with only two function pins A-K, corresponding A-K pins of Schottky diode. With 45V power NMOS integrated, DK5V45R25S can significantly reduce conduction loss of traditional Schottky diode. Hence the overall efficiency can be .

DK5V45R25S Datasheet (512.28 KB)

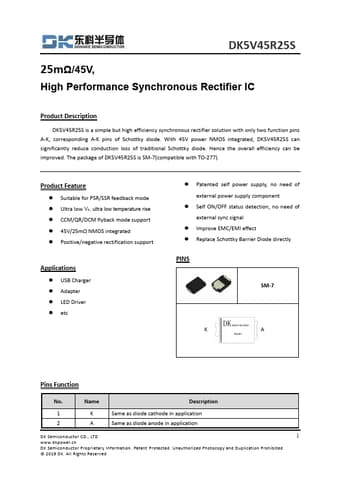

Preview of DK5V45R25S PDF

Datasheet Details

Part number:

DK5V45R25S

Manufacturer:

DongKe Semicondutor

File Size:

512.28 KB

Description:

High performance synchronous rectifier.
