DIM800FSM17-A000

Single Switch IGBT Module Preliminary Information

DIM800FSM17-A000 Features

* s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY PARAMETERS VCES (typ) VCE(sat)

* (max) IC (max) IC(PK) 1700V 2.7V 800A 1600A

* (measured at the power busbars and not the auxiliary terminals) APPLICAT

DIM800FSM17-A000 Datasheet (172.72 KB)

Preview of DIM800FSM17-A000 PDF

Datasheet Details

Part number:

DIM800FSM17-A000

Manufacturer:

Dynex Semiconductor

File Size:

172.72 KB

Description:

Single switch igbt module preliminary information.
DIM800FSM17-A000 www.DataSheet4U.com DIM800FSM17-A000 Single Switch IGBT Module Preliminary Information Replaces May 2001, version DS5461-1.0 DS5461-.

📁 Related Datasheet

DIM800FSM17-A000 - Single Switch IGBT Module Preliminary Information (Dynex)
DIM800FSM17-A000 .. DIM800FSM17-A000 Single Switch IGBT Module Preliminary Information Replaces May 2001, version DS5461-1.0 DS5461-.

DIM800FSS17-A000 - Single Switch IGBT Module (Dynex)
DIM800FSS17-A000 DIM800FSS17-A000 Single Switch IGBT Module Replaces October 2001 version DS5445-3.0 DS5445-4.0 March 2002 FEATURES s s s 10µs Shor.

DIM800ACM45-TS000 - IGBT Chopper Module (DYNEX)
Replaces DS6187-3 DIM800ACM45-TS000 IGBT Chopper Module DS6187-4 August 2023 (LN42740) FEATURES • 10µs Short Circuit Withstand • High Thermal Cyclin.

DIM800DCM17-A000 - IGBT (Dynex)
Replaces DS5444-5 DIM800DCM17-A000 IGBT Chopper Module DS5444-6 August 2021 (LN41102) FEATURES • 10µs Short Circuit Withstand • High Thermal Cycling.

DIM800DCS12-A000 - IGBT Chopper Module (DYNEX)
11.5 ±0.2 14 ±0.2 Replaces DS5839-1.1 DIM800DCS12-A000 IGBT Chopper Module DS5839-2 July 2014 (LN31760) FEATURES 16 ±0.2  10µs Short Circuit Withs.

DIM800DDM12 - Dual Switch IGBT Module Preliminary Information (Dynex)
DIM800DDM12-A000 DIM800DDM12-A000 Dual Switch IGBT Module Preliminary Information DS5528-1.1 March 2002 FEATURES s s s s 10µs Short Circuit Withsta.

DIM800DDM17-A000 - Dual Switch IGBT (Dynex)
11.5 ±0.2 14 ±0.2 Replaces DS5433-4.1 July 02 DIM800DDM17-A000 Dual Switch IGBT Module DS5433-5 June 2009 (LN26751) FEATURES 6 ±0.2 18 ±100.µ2s Sh.

DIM800DDM17-PS500 - Dual Switch IGBT (DYNEX)
11.5 ±0.2 14 ±0.2 Replaces DS6179-4 DMOS+ Gen4 DMOS DIM800DDM17-PS500 Dual Switch IGBT Module DS6179-5 October 2021 (LN41267) 6 ±0.2 FEATURES 1•8.

TAGS

DIM800FSM17-A000 Single Switch IGBT Module Preliminary Information Dynex Semiconductor

Image Gallery

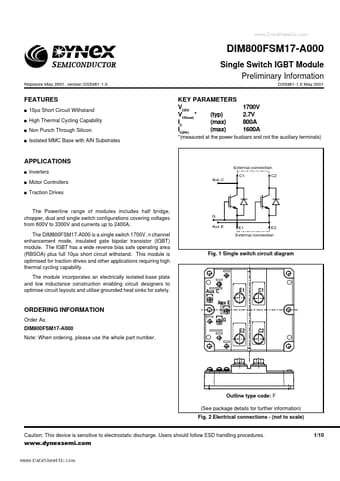

DIM800FSM17-A000 Datasheet Preview Page 2 DIM800FSM17-A000 Datasheet Preview Page 3
