SV1016KR - Rectifier Diode

This page provides the datasheet information for the SV1016KR, a member of the SV10xx Rectifier Diode family.

Datasheet Summary

Features

  • s High Surge Capability.

📥 Download Datasheet

Datasheet preview – SV1016KR

Datasheet Details

Part number SV1016KR
Manufacturer Dynex Semiconductor
File Size 135.54 KB
Description Rectifier Diode
Datasheet download datasheet SV1016KR Datasheet
Additional preview pages of the SV1016KR datasheet.

📁 Similar Datasheet

  • SV1045 - Low VF Schottky Rectifier SMD (HAOHAI)
  • SV1045 - SCHOTTKY BARRIER RECTIFIER (PANJIT)
  • SV1045E - Schottky Diode (BLUE ROCKET ELECTRONICS)
  • SV1060E - Schottky Diode (BLUE ROCKET ELECTRONICS)
  • SV10U45E - Schottky Diode (BLUE ROCKET ELECTRONICS)
  • SV1.57CD0005 - VOC (Soshin)
  • SV1.67PH0009 - VOC (Soshin)
  • SV115K05 - Special Medium Voltage Leaded Varistors (Stackpole)
  • SV115K07 - Special Medium Voltage Leaded Varistors (Stackpole)
  • SV115K10 - Special Medium Voltage Leaded Varistors (Stackpole)
Other Datasheets by Dynex Semiconductor

Full PDF Text Transcription

Click to expand full text

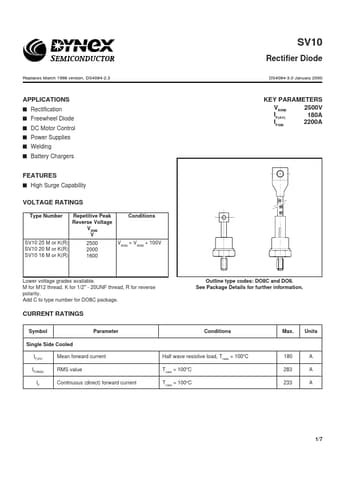

Replaces March 1998 version, DS4084-2.3 APPLICATIONS s Rectification s Freewheel Diode s DC Motor Control s Power Supplies s Welding s Battery Chargers FEATURES s High Surge Capability VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage V RRM V SV10 25 M or K(R) SV10 20 M or K(R) SV10 16 M or K(R) 2500 2000 1600 Conditions V = V + 100V RSM RRM SV10 SV10 Rectifier Diode DS4084-3.0 January 2000 KEY PARAMETERS VRRM IF(AV) IFSM 2500V 180A 2200A Lower voltage grades available. M for M12 thread. K for 1/2" - 20UNF thread, R for reverse polarity. Add C to type number for DO8C package. CURRENT RATINGS Outline type codes: DO8C and DO8. See Package Details for further information.
