SV1.57CD0005 Datasheet - Soshin

SV1.57CD0005 VOC

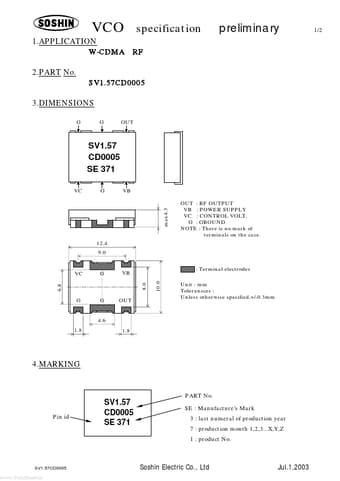

VCO 1.APPLICATION W-CDMA 2.PART No. specification RF preliminary 1/2 SV1.57CD0005 3.DIMENSIONS G G OUT SV1.57 CD0005 œ VC SE 371 G VB SIDE VIEW OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NOTE : There is no mark of terminals on the case. 12.4 9.0 max4.3 VC 6.8 G VB 10.0 8.0 : Terminal electrodes Unit : mm Toleransces : Unless otherwise specified,+/-0.3mm BOTTOM VIEW G G OUT 4.6 1.8 1.8 4.MARKING PART No. Pin id œ SV1.57 CD0005 SE 371 SE .

SV1.57CD0005 Datasheet (100.95 KB)
