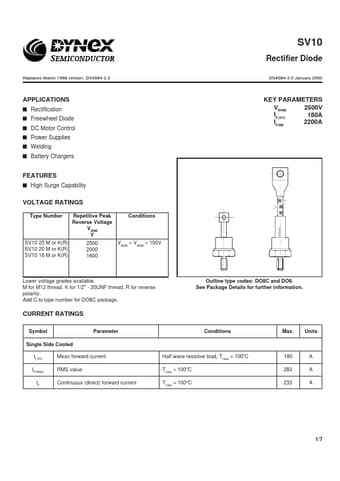

* s High Surge Capability VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage V RRM V SV10 25 M or K(R) SV10 20 M or K(R) SV10 16 M or K(R) 2500 2000 1600 Conditions V = V + 100V RSM RRM SV10 SV10 Rectifier Diode DS4084-3.0 January 2000 KEY PARAMETERS VRRM IF(AV) IFSM 2500V 180A 2
SV1025KR Datasheet (135.54 KB)
SV1025KR
Dynex Semiconductor
135.54 KB
Rectifier diode.
Replaces March 1998 version, DS4084-2.3
APPLICATIONS s Rectification s Freewheel Diode s DC Motor Control s Power Supplies s Welding s Battery Charge.
