SV115K05 Datasheet - Stackpole

Special Medium Voltage Leaded Varistors

SV115K05 Features

* Standard Varistor Types

* AC operating voltage (Vrms) from 60V to 680V

* DC operating voltage (Vdc) from 85V to 895V

* 6 model sizes equivalent to standard disc varistors from 5mm to 23mm

* Smaller nominal dimensions

* Broad range of current and energy handlin

SV115K05 General Description

The SV Series of transient voltage suppressors are epoxy-coated square or rectangular shaped leaded varistors with AC operating voltage ranging 60V to 680V. There are two versions of these varistors. The standard version of square varistors, featuring extremely high-current and high-energy capabilit.

SV115K05 Datasheet (88.60 KB)

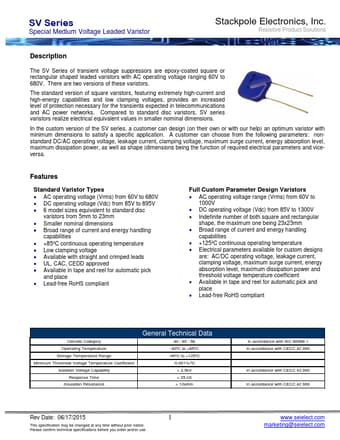

SV115K05 Datasheet Preview — Preview of SV115K05 PDF

Datasheet Details

Part number:

SV115K05

Manufacturer:

Stackpole

File Size:

88.60 KB

Description:

Special medium voltage leaded varistors.
