SV1.67PH0009 Datasheet - Soshin

SV1.67PH0009 VOC

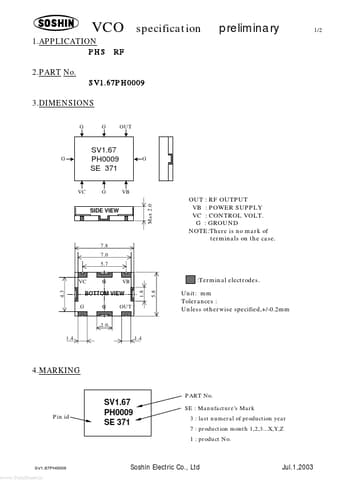

VCO 1.APPLICATION PHS 2.PART No. RF specification preliminary 1/2 SV1.67PH0009 3.DIMENSIONS G G OUT G œ VC SV1.67 PH0009 SE 371 G VB G SIDE VIEW 7.8 7.0 5.7 VC 4.3 G VB 1.8 5.8 OUT : RF OUTPUT VB : POWER SUPPLY VC : CONTROL VOLT. G : GROUND NOTE:There is no mark of terminals on the case. Max 2.0 :Terminal electrodes. Unit: mm Tolerances : Unless otherwise specified,+/-0.2mm BOTTOM VIEW G G 2.0 1.4 OUT 1.4 4.MARKING PART No. Pin id œ SV1.67 PH0009 SE 371 SE : .
