DFM1200NXM33-F000

Fast Recovery Diode Module

DFM1200NXM33-F000 Features

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base With AlN Substrates

* Dual Diodes Can Be Paralleled For 2400A Rating

* Lead Free Construction

* Low FIT Rate APPLICATIONS

* Chopper Diodes

* Boost and Buck Converter

DFM1200NXM33-F000 Datasheet (222.54 KB)

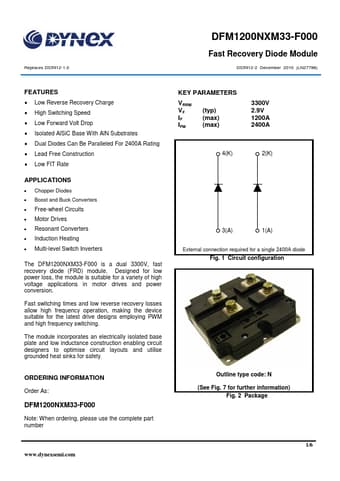

Preview of DFM1200NXM33-F000 PDF

Datasheet Details

Part number:

DFM1200NXM33-F000

Manufacturer:

Dynex

File Size:

222.54 KB

Description:

Fast recovery diode module.
