DFM1200XXM45-TS000 Fast Recovery Diode Module

DFM1200XXM45-TS000 Description

DFM1200XXM45-TS000 Fast Recovery Diode Module DS6130-1 October 2013 (LN31069) .

DFM1200XXM45-TS000 Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base With AlN Substrates

DFM1200XXM45-TS000 Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Snubber Circuit
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM1200XXM45-TS000 is a dual 4500V, fast recovery diode (FRD) module. Designed for low power loss, the module

📥 Download Datasheet

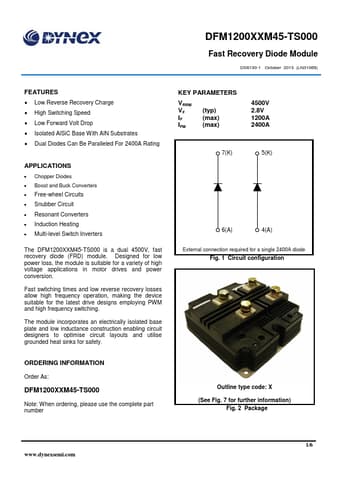

Preview of DFM1200XXM45-TS000 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DFM1200XXM45-TS000
Manufacturer
Dynex
File Size
230.23 KB
Datasheet
DFM1200XXM45-TS000-Dynex.pdf
Description
Fast Recovery Diode Module
