DFM400NXM33-A000

Fast Recovery Diode Module Target Information

DFM400NXM33-A000 Features

* s Low Reverse Recovery Charge s High Switching Speed s Low Forward Voltage Drop s Isolated Base s Dual Diodes Can Be Paralleled for 800A Rating s MMC Baseplate With AlN Substrates KEY PARAMETERS VRRM VF (typ) (max) IF (max) IFM 3300V 2.5V 400A 800A External connection C1(K1) C2(K2) APPLICATIONS

DFM400NXM33-A000 Datasheet (120.19 KB)

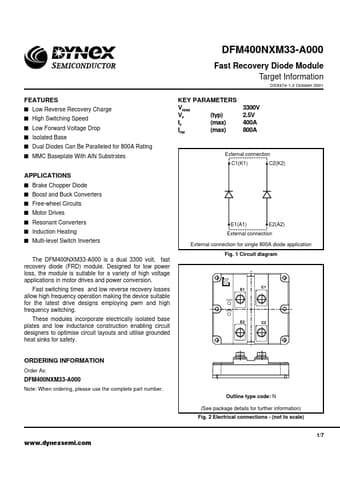

Preview of DFM400NXM33-A000 PDF

Datasheet Details

Part number:

DFM400NXM33-A000

Manufacturer:

Dynex

File Size:

120.19 KB

Description:

Fast recovery diode module target information.
