DFM450NXM45-F000

Fast Recovery Diode Module

DFM450NXM45-F000 Features

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base With AlN Substrates

* Dual Diodes Can Be Paralleled For 900A Rating

* Lead Free Construction KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 4500V 3.0V 450A 900A 4(K) 2(K)

DFM450NXM45-F000 Datasheet (222.40 KB)

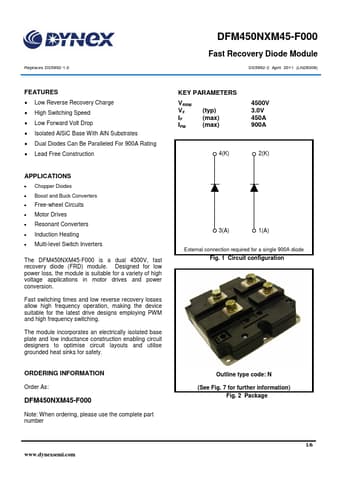

Preview of DFM450NXM45-F000 PDF

Datasheet Details

Part number:

DFM450NXM45-F000

Manufacturer:

Dynex

File Size:

222.40 KB

Description:

Fast recovery diode module.
